應用場景

Application

1、槽孔占比達到20%以上的電路板，改鉆槽孔為鑼工藝，槽孔越多提升率越明顯

The PCB SOLT be more than 20% of CNC,need to improvement in processing efficiency by

Changing the drilling to routing;

2、金屬包邊板，鉆鑼工序在同一工作臺面完成，節省上下板人力投入，無需重新定位

For metal-cald PCB and can to drilling and routing which done on the machine the same.

no need to loading and unloading then to save time and cost:

3、應用于小批量的單鉆或者鑼加工，作為傳統鉆機或者鑼機使用

Used for small batch drilling and routing the same for conventional CNC amchine;

4、針對短槽歪移問題，此設備可以完全解決和預防

The machine can to solving solt deformation by the machine;

5、可以直接實現6.5-13mm的超大刀直接一次鉆。

Machine can to drilled out diameter6.5-13mm directly.;

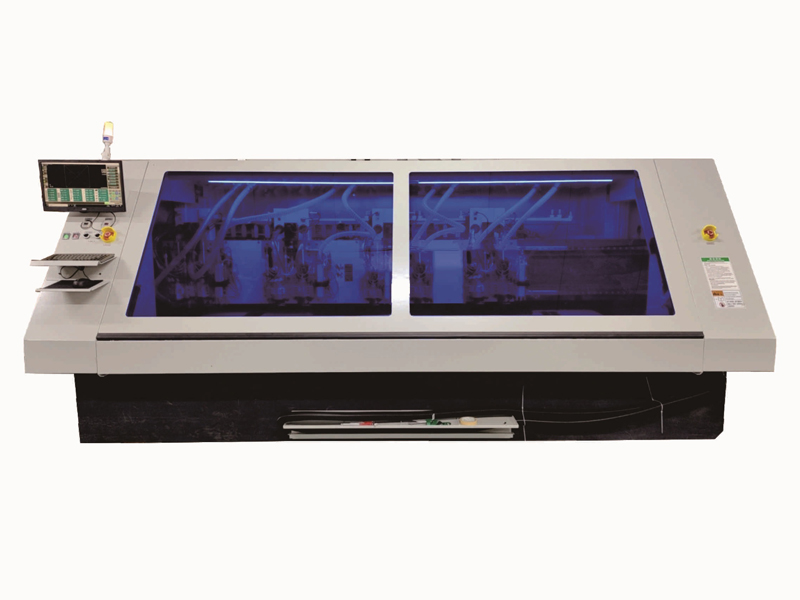

設備主要性能

Equipment Main performance

1、Window10操作系統，控制系統采用華建自主知識產權Delta5.0

Window 10 operation system to control machine base on own R&D Delta 5.0

2、機床及運動軸基準平臺全部為天然黑色花崗石，精度高，受外界環境變化小

Machine frame and motion axis reference plane made entirely of natural black aranite.

providina hiah precision and minimal sensitivity to externa environment changes

3、Z軸傳動采用世界[敏感詞]產品日本NSK或THK公司的滾珠絲桿

The Z-axis drive uses ball screws from world-renowned NSK or THK brands.

4、導向采用日本THK和德國施耐博格直線導軌

Guiding system use THK brand from Japan and Germany Schneeberager for liner guides

5、鉆氣浮主軸20萬轉每分鐘，鑼主軸6萬轉每分鐘

Driling spindle speed:200K.rpm air-floating spindle.routing spindle speed:60K.rpm

6、自動測量刀具長度，接觸式斷刀檢測

Automatic measuring the lenath of tool and contact-based tool breakage detection
